Palit brings new feature “ARGB SYNC” for gamers. With a single cable, you can synchronize the lighting of Palit graphics card along with supported PC devices.






Palit ARGB SYNC - Installation Guide





This ARGB strip supports 5V only. Please follow below steps for installation.If any help needed, please contact our technical support team: support@palit.com
STEP-01

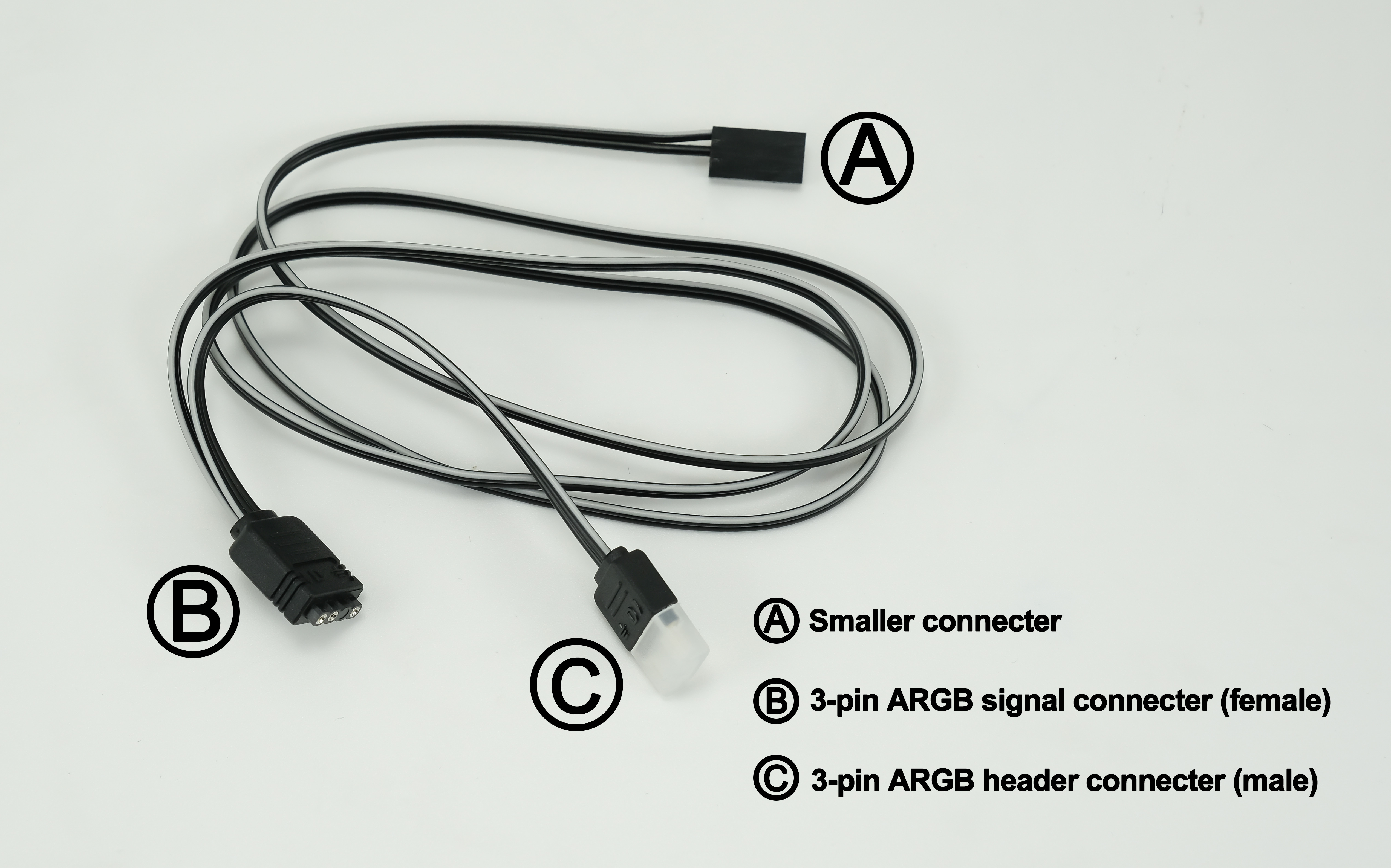

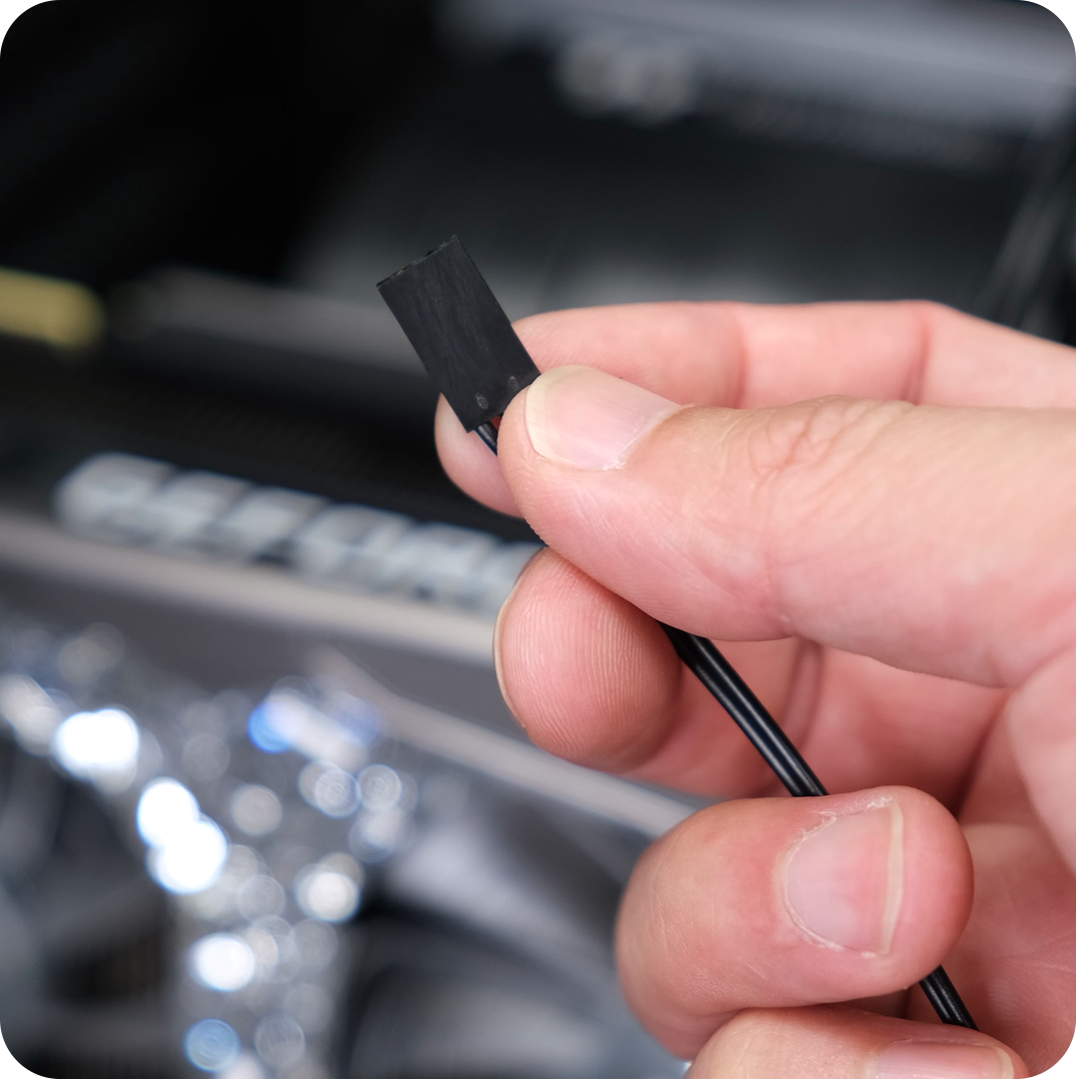

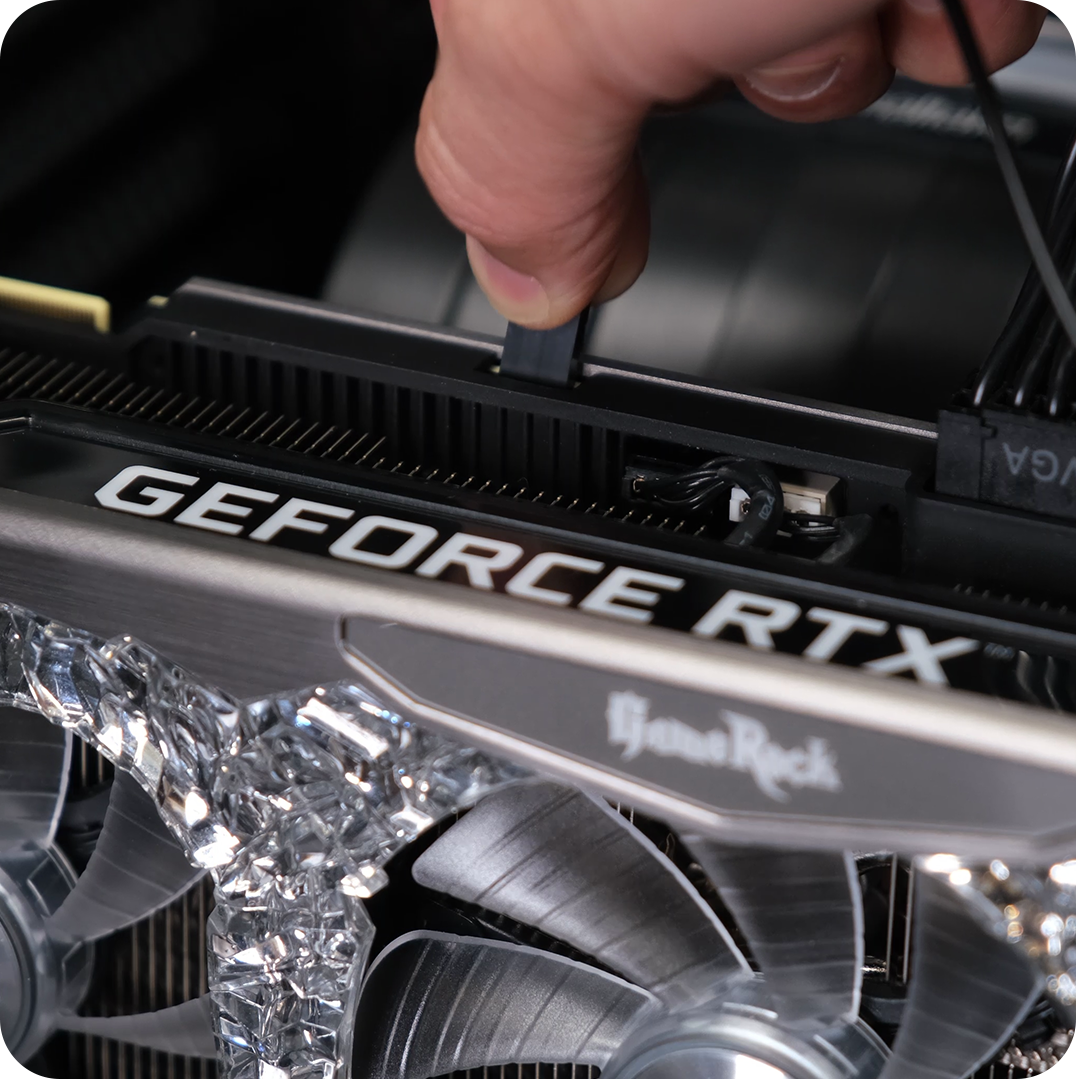

Connect the smaller end Ⓐ to GPU’s connector. The connector is non-directional, so you don’t need to worry about damaging the card with wrong connection.









STEP-02

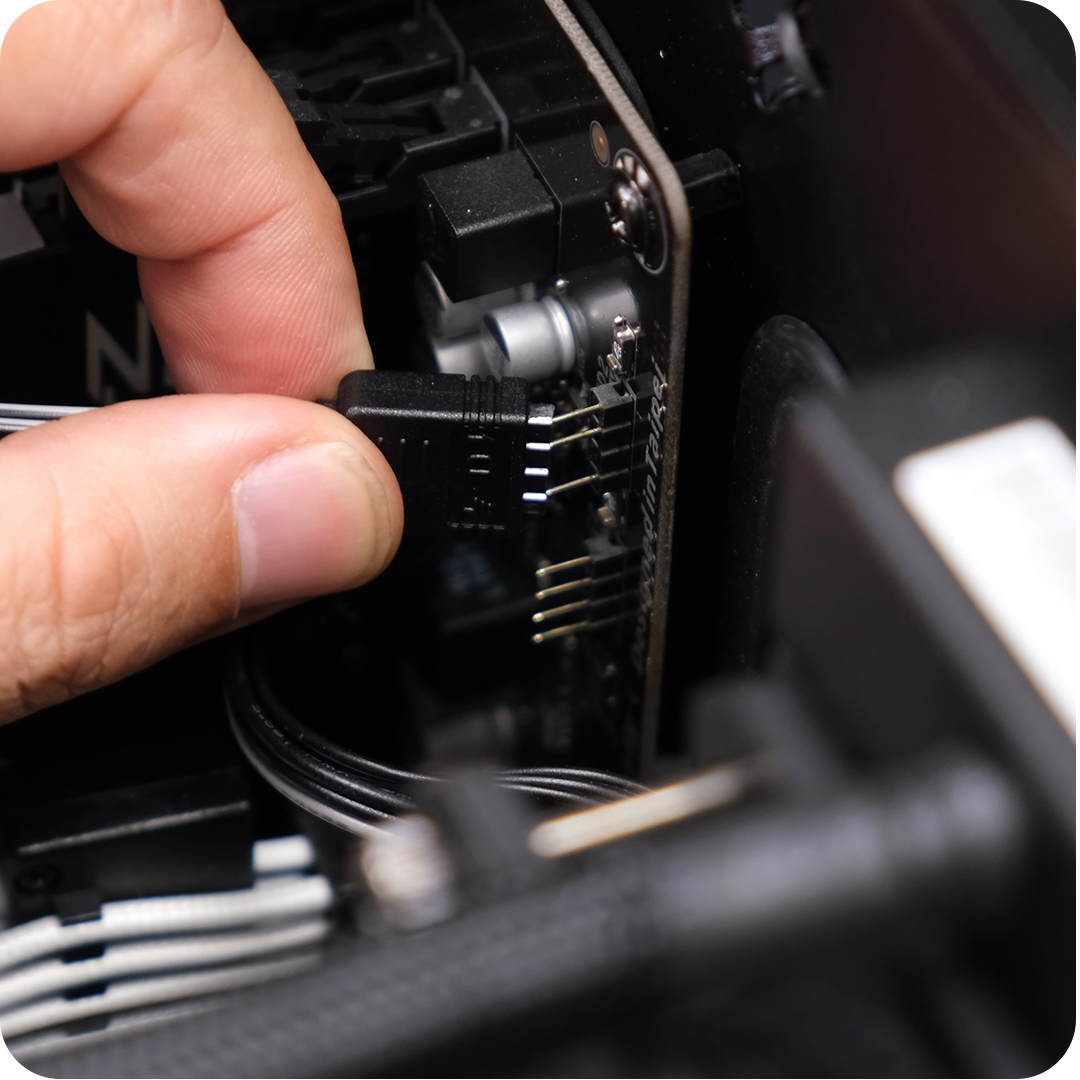

Connect Ⓑ (female) connector to the motherboard or other ARGB controller.
NOTE: The ARGB strip supports 5V only (from the motherboard header or ARGB controller.) Incorrect connection may lead to damage of the strip.





STEP-03

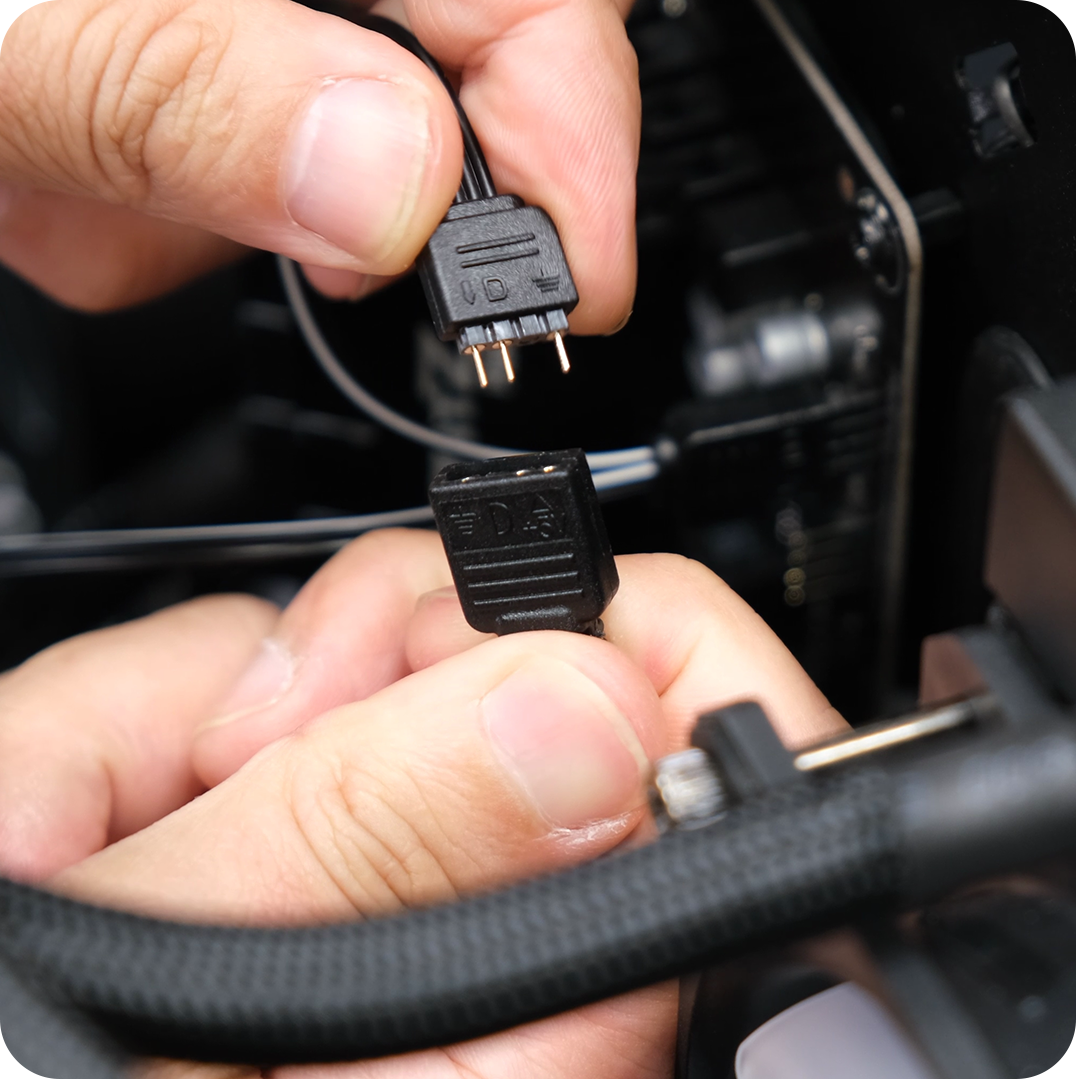

If you have other ARGB-supported devices, you can connect Ⓒ (male) connector to the ARGB strip.

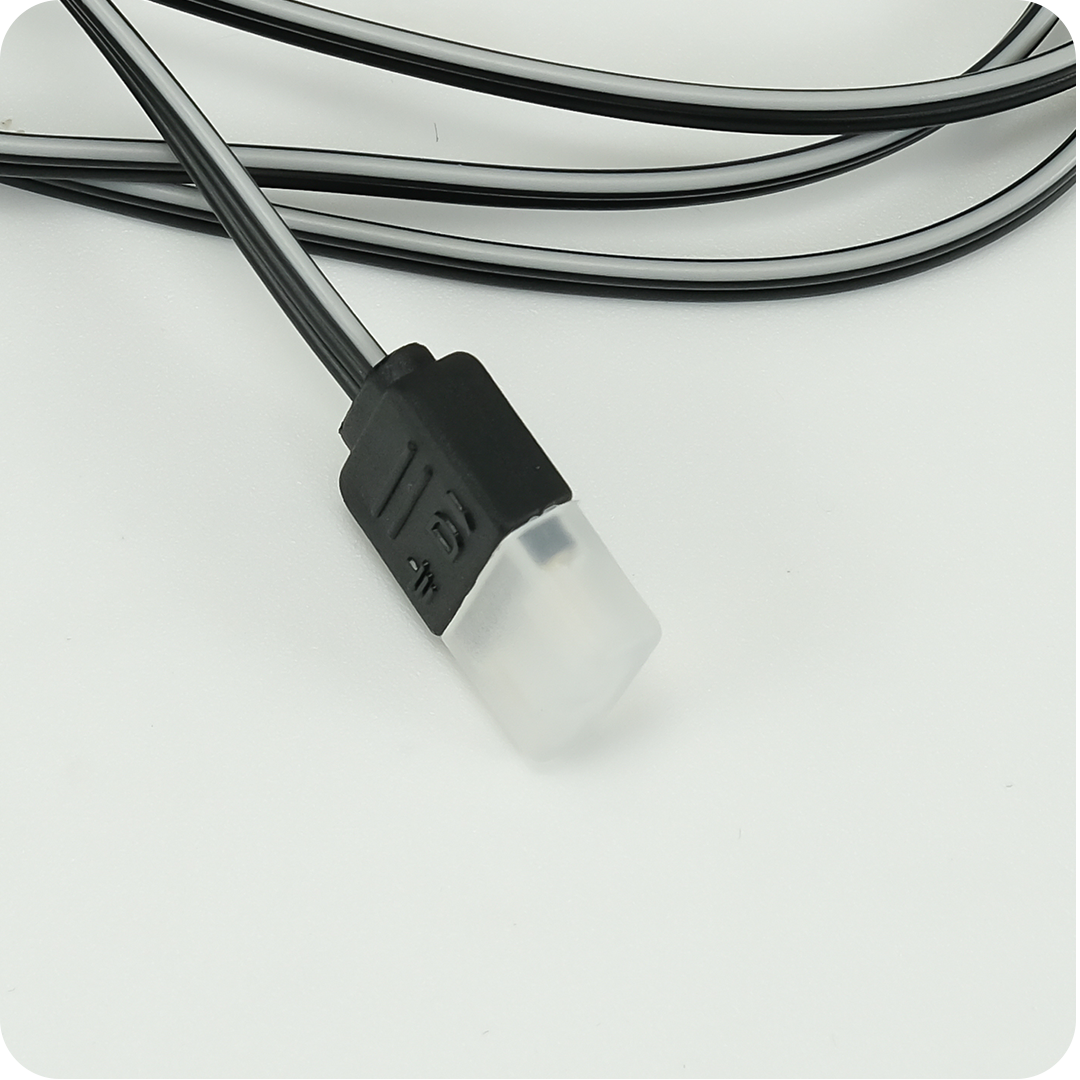

NOTE: If you are not using the Ⓒ (male) connector, please do NOT remove the protection cap in order to prevent the strip from damage.









STEP-04

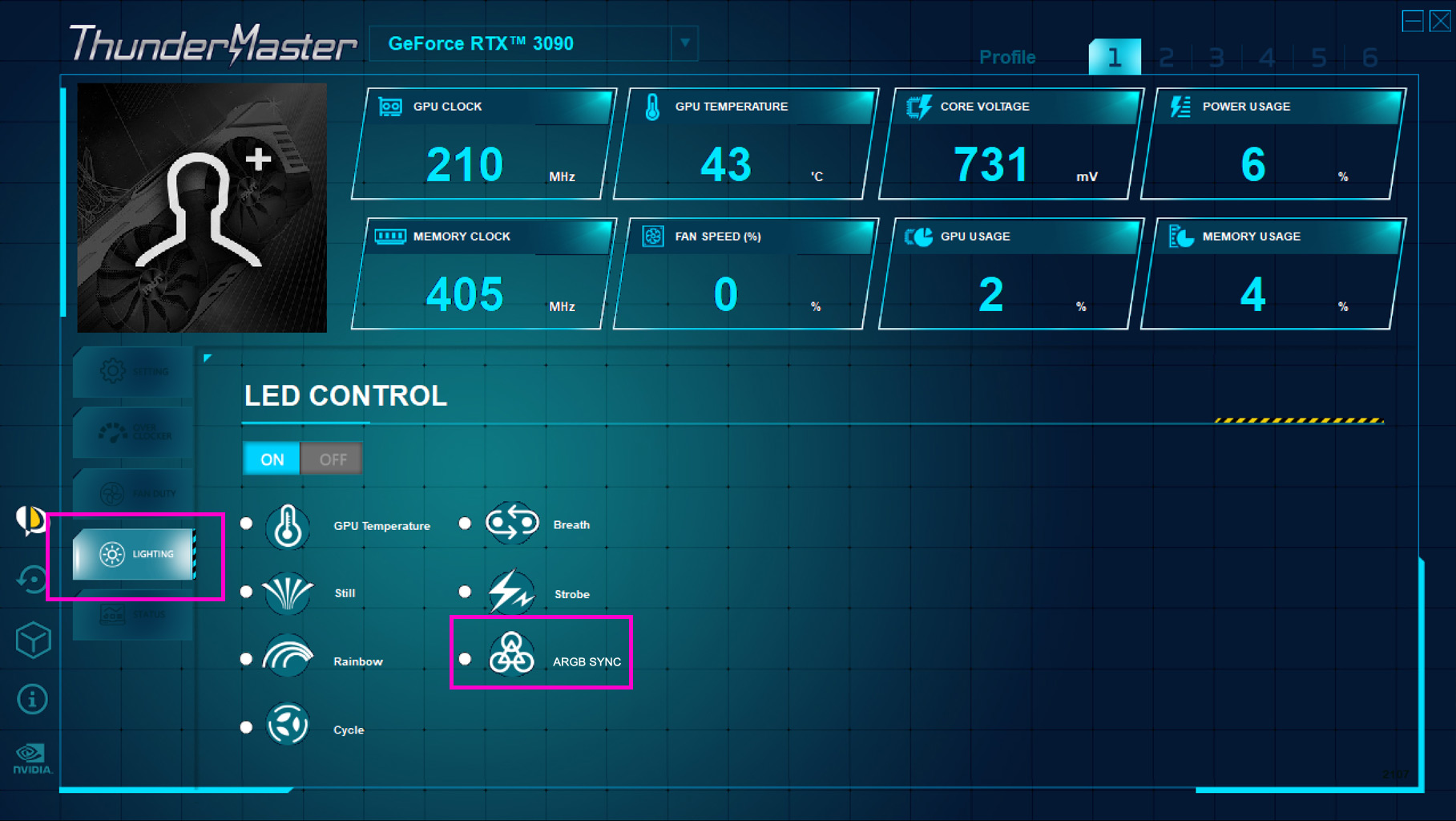

Please download the ThunderMaster and select “ARGB SYNC” under the “Lighting” tab. The software which controls the ARGB of PC devices will then be able to sync the lighting of PALIT graphics card.





Palit ARGB SYNC - Supported Models
GeForce RTX™ 3090 Ti GameRock OC
GeForce RTX™ 3090 Ti
24GB/384bit
GDDR6X
HDMI 2.1 / DisplayPort
GeForce RTX™ 3090 Ti GameRock
GeForce RTX™ 3090 Ti
24GB/384bit
GDDR6X
HDMI 2.1 / DisplayPort
GeForce RTX™ 3090 GameRock OC
GeForce RTX™ 3090
24G/384bit
GDDR6X
HDMI 2.1 / DisplayPort
GeForce RTX™ 3090 GameRock
GeForce RTX™ 3090
24G/384bit
GDDR6X
HDMI 2.1 / DisplayPort
GeForce RTX™ 3080 Ti GameRock OC
GeForce RTX™ 3080 Ti
12GB/384bit
GDDR6X
HDMI 2.1 / DisplayPort
GeForce RTX™ 3080 Ti GameRock
GeForce RTX™ 3080 Ti
12GB/384bit
GDDR6X
HDMI 2.1 / DisplayPort
GeForce RTX™ 3080 GameRock OC 12GB
GeForce RTX™ 3080
12GB/384bit
GDDR6X
HDMI 2.1 / DisplayPort
GeForce RTX™ 3080 GameRock OC
GeForce RTX™ 3080
10G/320bit
GDDR6X
HDMI 2.1 / DisplayPort
GeForce RTX™ 3080 GameRock OC V1
GeForce RTX™ 3080
10G/320bit
GDDR6X
HDMI 2.1 / DisplayPort
GeForce RTX™ 3080 GameRock 12GB
GeForce RTX™ 3080
12GB/384bit
GDDR6X
HDMI 2.1 / DisplayPort
GeForce RTX™ 3080 GameRock
GeForce RTX™ 3080
10G/320bit
GDDR6X
HDMI 2.1 / DisplayPort
GeForce RTX™ 3080 GameRock V1
GeForce RTX™ 3080
10G/320bit
GDDR6X
HDMI 2.1 / DisplayPort
GeForce RTX™ 3070 Ti GameRock OC
GeForce RTX™ 3070 Ti
8G/256bit
GDDR6X
HDMI 2.1 / DisplayPort
GeForce RTX™ 3070 Ti GameRock
GeForce RTX™ 3070 Ti
8G/256bit
GDDR6X
HDMI 2.1 / DisplayPort
GeForce RTX™ 3070 GameRock OC
GeForce RTX™ 3070
8G/256bit
GDDR6
HDMI 2.1 / DisplayPort
GeForce RTX™ 3070 GameRock OC V1
GeForce RTX™ 3070
8G/256bit
GDDR6
HDMI 2.1 / DisplayPort
GeForce RTX™ 3070 GameRock
GeForce RTX™ 3070
8G/256bit
GDDR6
HDMI 2.1 / DisplayPort
GeForce RTX™ 3070 GameRock V1
GeForce RTX™ 3070
8G/256bit
GDDR6
HDMI 2.1 / DisplayPort
GeForce RTX™ 3070 JetStream OC
GeForce RTX™ 3070
8G/256bit
GDDR6
HDMI 2.1 / DisplayPort
GeForce RTX™ 3070 JetStream OC V1
GeForce RTX™ 3070
8G/256bit
GDDR6
HDMI 2.1 / DisplayPort
GeForce RTX™ 3070 JetStream
GeForce RTX™ 3070
8G/256bit
GDDR6
HDMI 2.1 / DisplayPort
GeForce RTX™ 3070 JetStream V1
GeForce RTX™ 3070
8G/256bit
GDDR6
HDMI 2.1 / DisplayPort
